RE900

29/187
Order quantity Price (net)
01-09 pcs per 35.59 €
10-24 pcs per 34.60 €
25-49 pcs per 33.94 €
50-99 pcs per 33.61 €
>100 pcs per 32.95 €

Product details

    • Epoxy fibre-glass FR4 1.50 mm
    • Double-sided 35 µm Cu
    • Plated through holes (PTH)
    • Surface chem. Ni/Au with solder stop mask
    • Adaption circuit board for 14 different SMD TSOP I and 7 different SMD TSOP II chips
    • Pitch 0.40 mm (15.7 mil); 0.50 mm (19.7 mil); 0.65 mm (26.5 mil); 0.80 mm (30 mil); 1.27 mm (50 mil)
    • Hole diameter 1.00 mm
    • Prescratched rated break point for the separation of individual moduls from the board
    • Gerber data for manufacture of the soldering paste imprint will be provided free of charge on request

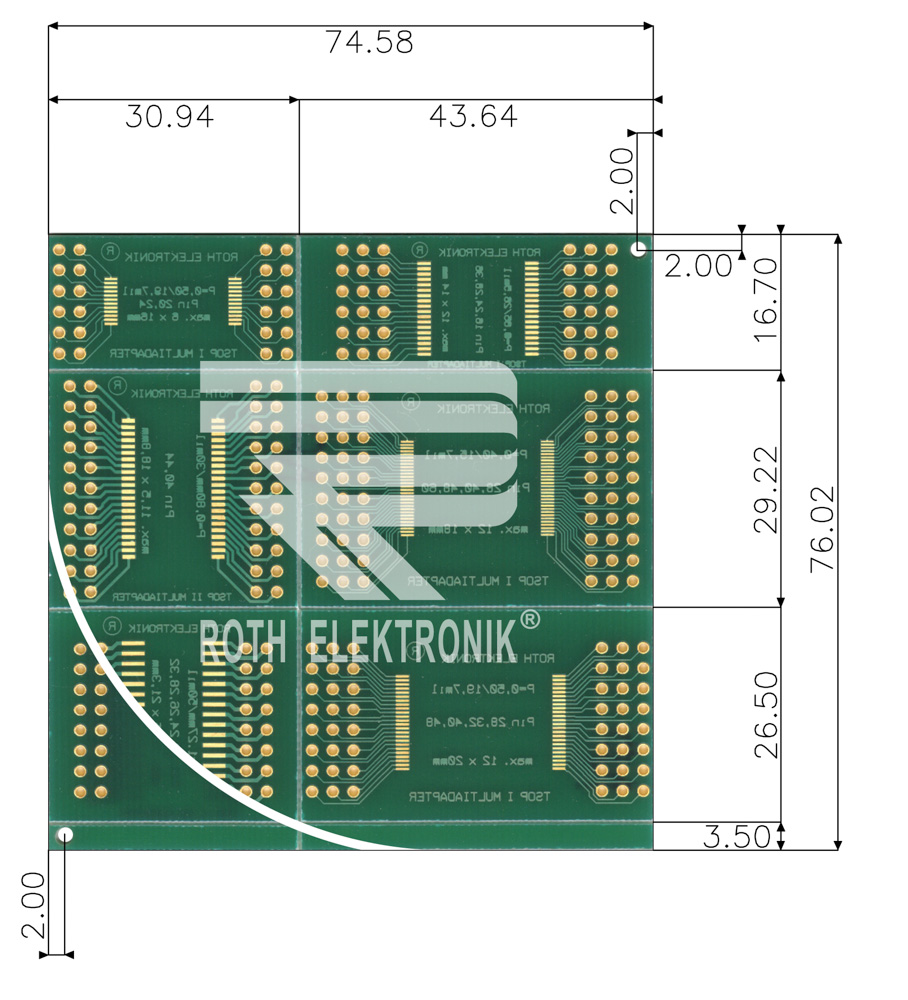

    • Size: 72.60 x 76.20 mm
